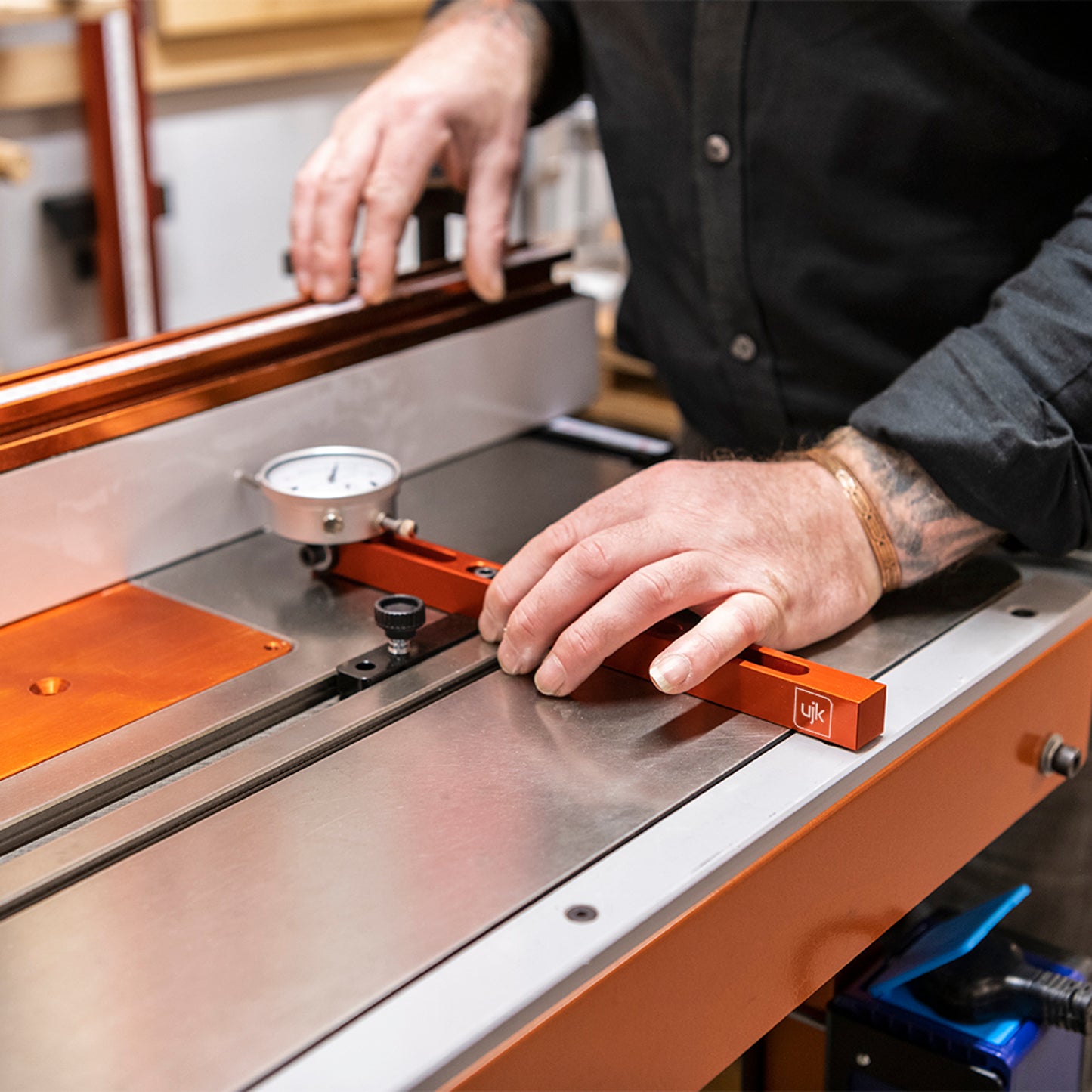

Machine Aligning Jig

It is important to get the best from your saw, an accurate set up guarantees accurate results. The UJK Aligning Jig is a highly accurate jig that is simple to use. On a table saw you can measure: • The alignment of the blade to the mitre slots • The alignment the fence to the mitre slots • The axial run-out of the blade (the side to side wobble you see if the blade is turned slowly) • The axial run out of the blade flange • The axial run out of the blade arbor

Based on a simple mounting bar that fits any standard 19mm (3/4") mitre gauge slot, the mounting bar has adjustable spring loaded balls to ensure a snug fit, plus levelling screws to accommodate differing depths of mitre slot. The dial indicator reads in increments of 0.01mm with a total travel of 10mm. An invaluable tool in any workshop.
