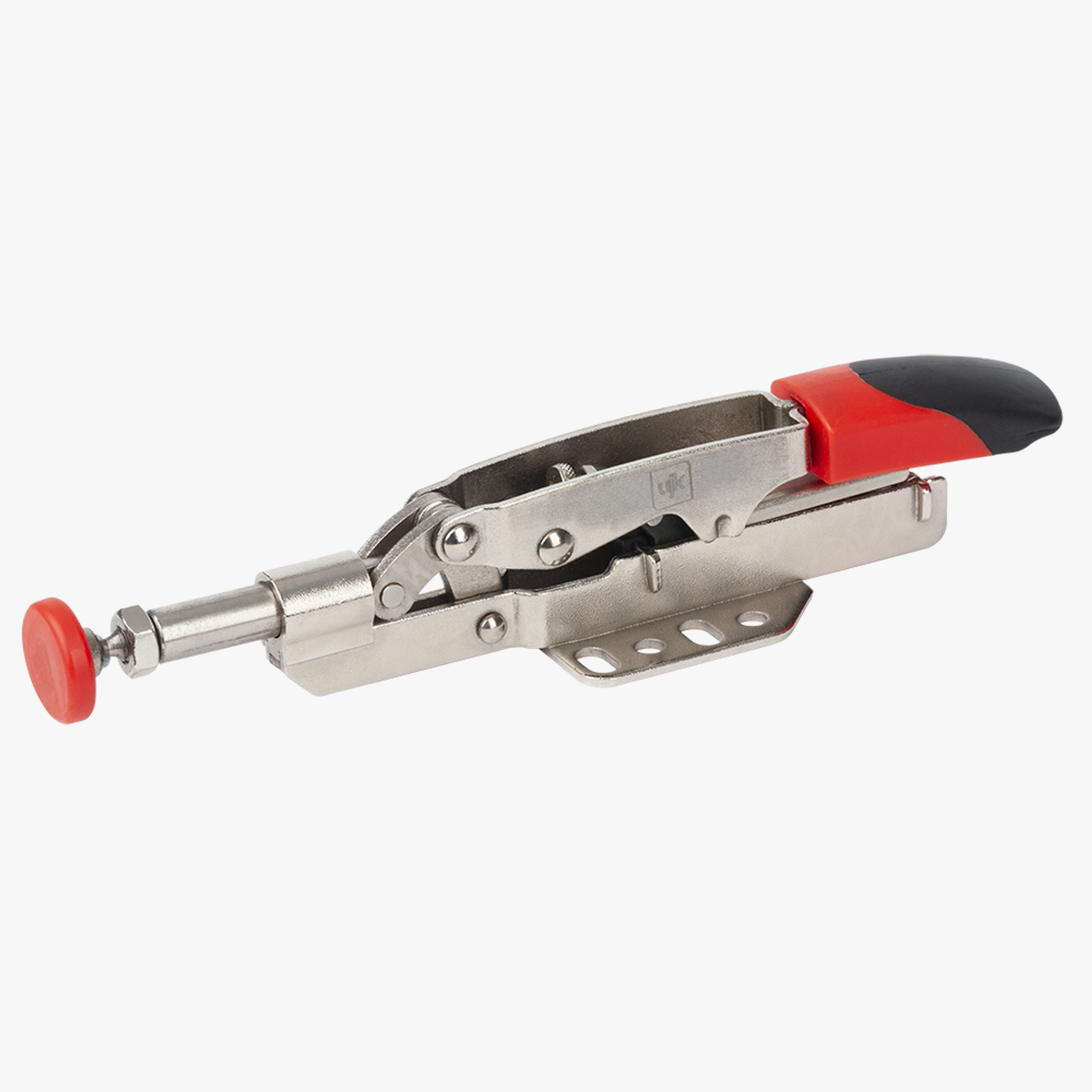

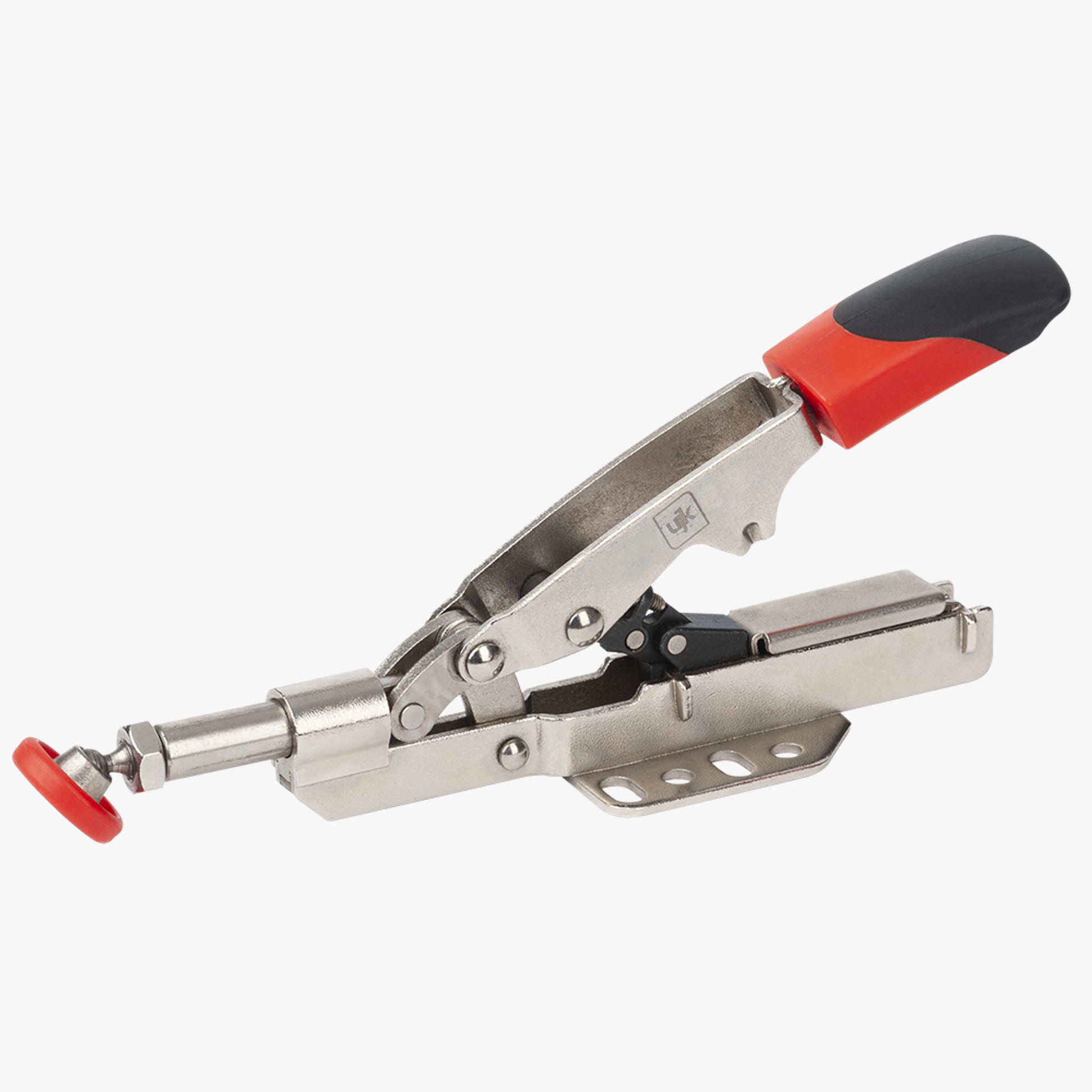

Self Adjusting Toggle Clamp Push/Pull 25

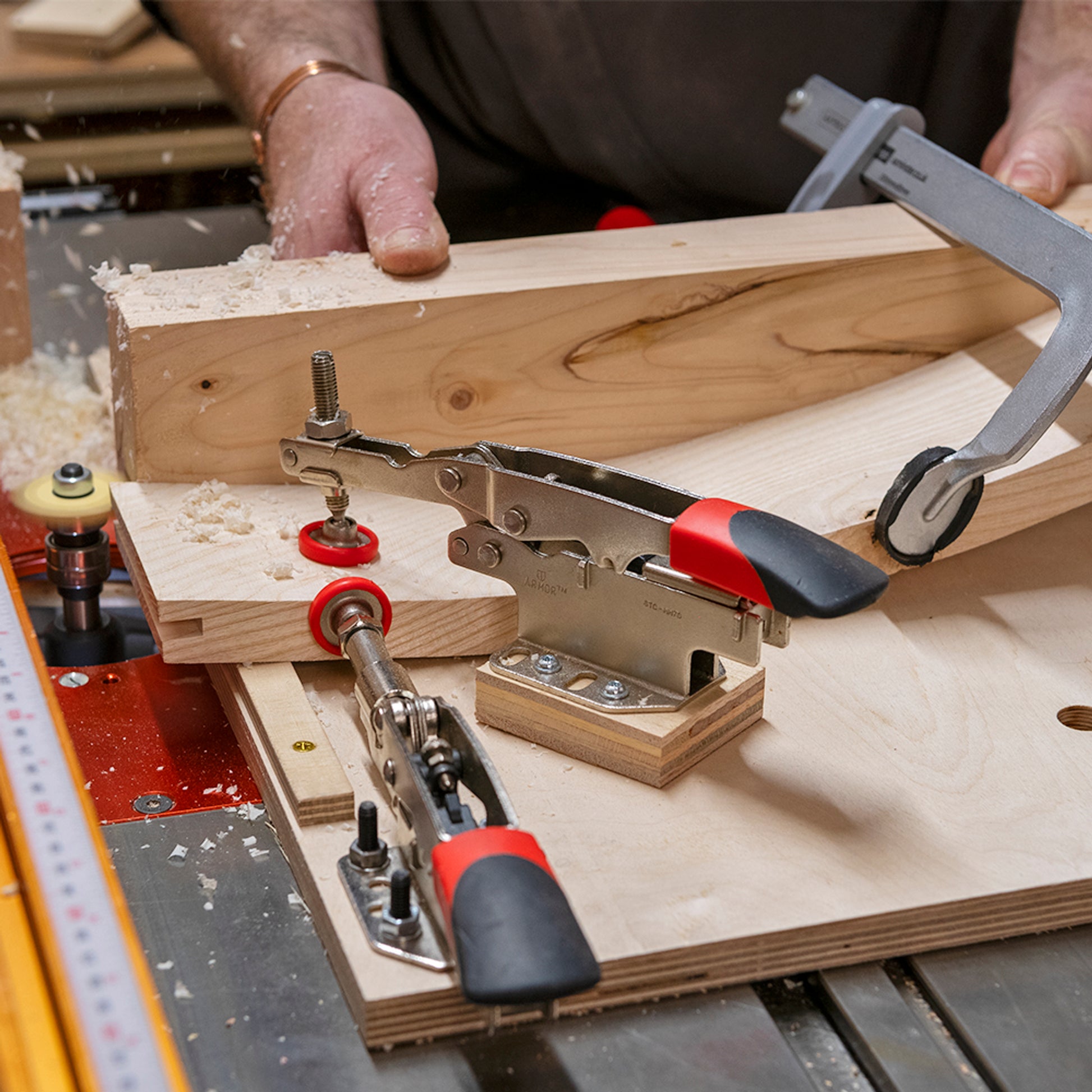

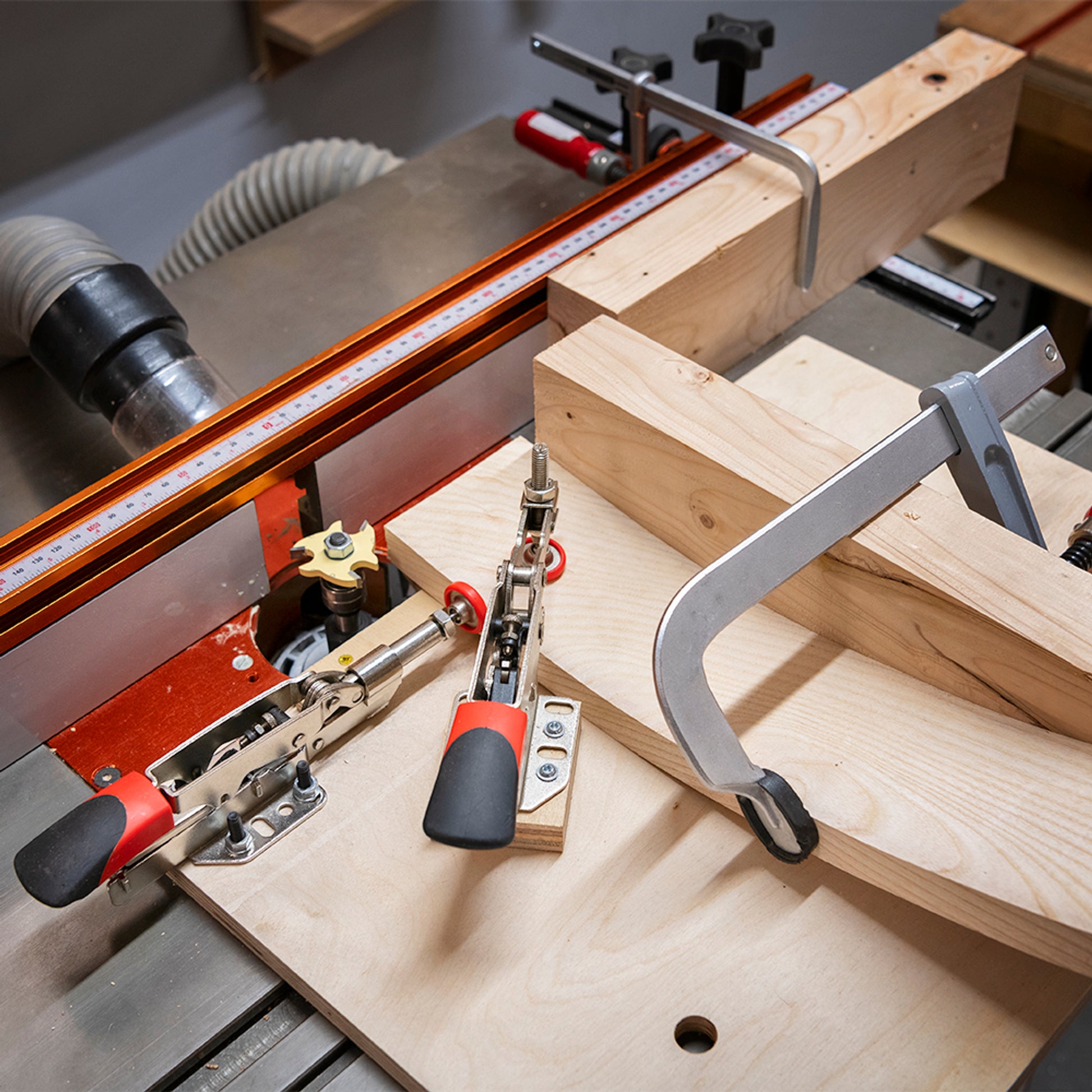

Industrial quality self-adjusting push/pull toggle clamp converts the movement of the handle into an axial movement of the piston. The piston pushes a workpiece against a fence or stops and locks with the handle in the horizontal position. For example as used on most pocket-hole jig systems. The piston has 25mm of travel and automatically adjusts to variations in workpiece thickness. The piston centre height is 23mm. A set-screw, on the cantilevered joint, adjusts the clamping force to your particular needs up to 3,000N.

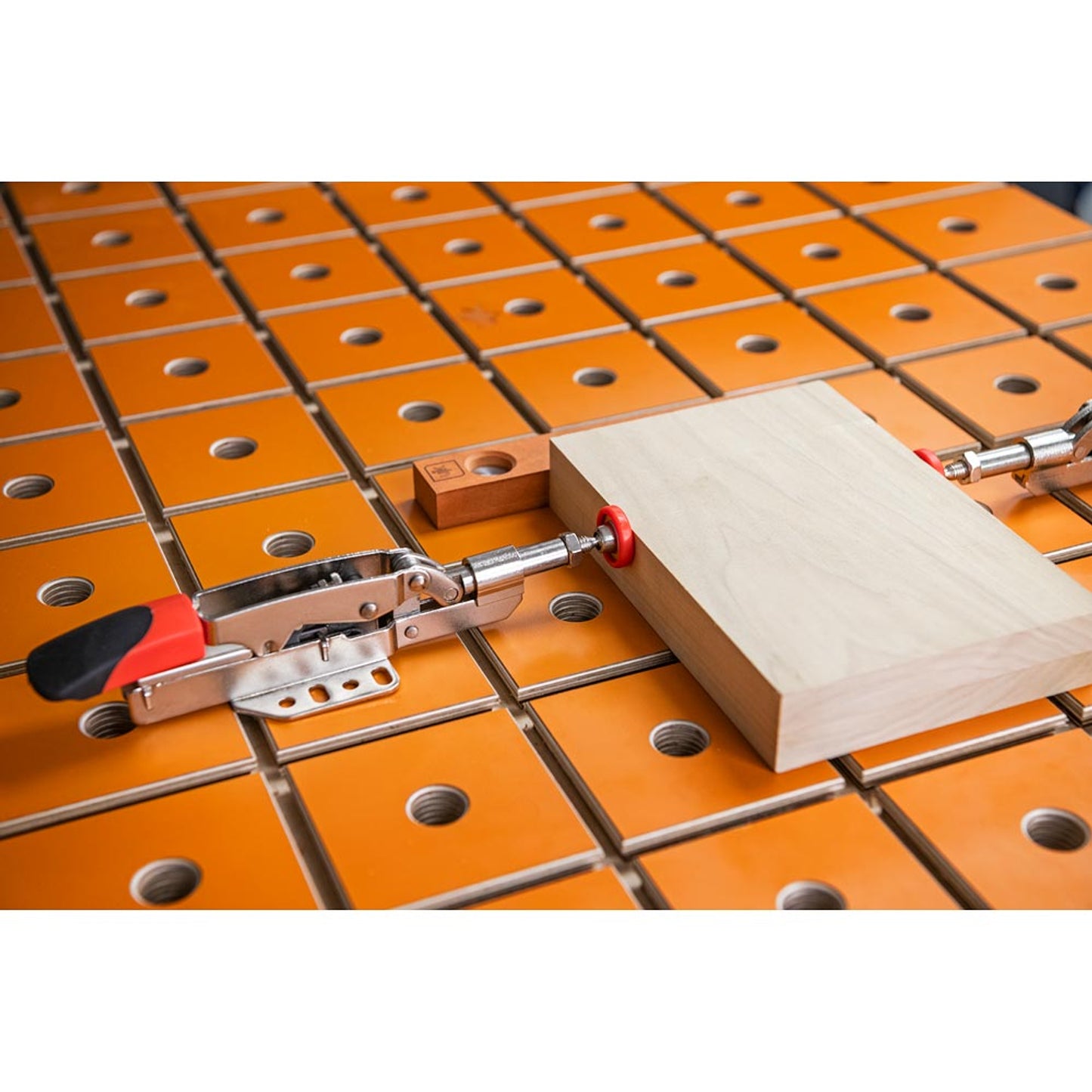

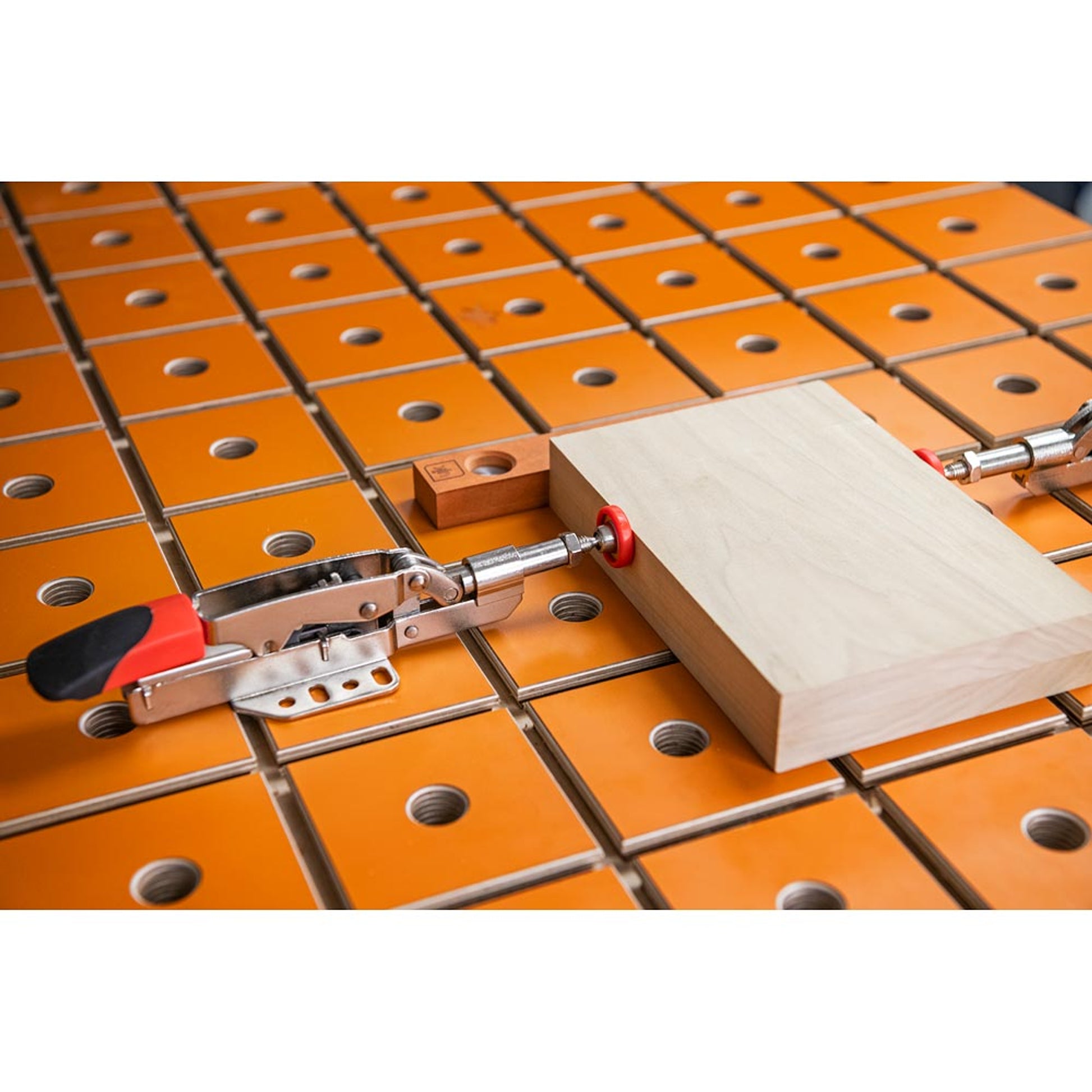

The piston has an internal thread with an extension for manual length adjustment. The wide injection moulded handle has a soft grip insert, which makes setting the clamp a comfortable operation. Made from quality steel, galvanised and passivated against corrosion. It has a central hole to allow fitting to MFT using UJK anchor dogs. Dogs and toggle clamp plates available to attached the clamp to a Multifunction work bench where needed (sold separately).
